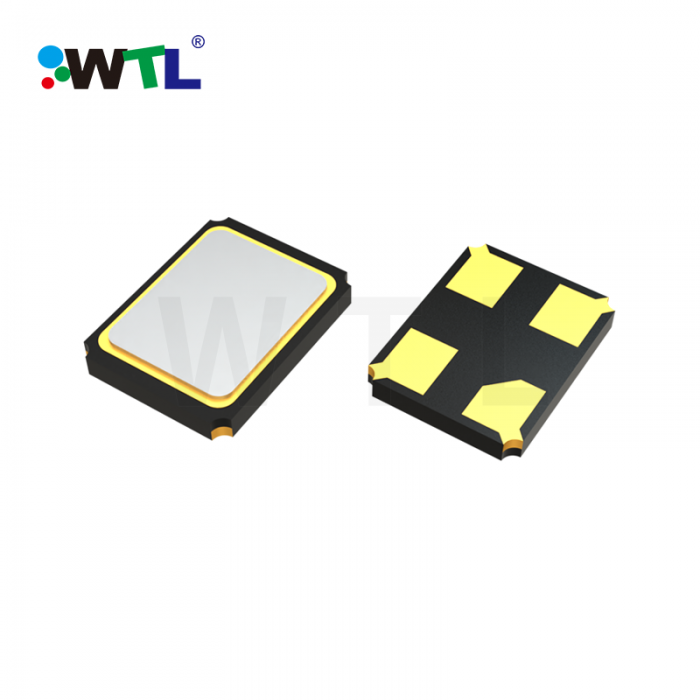

TX8 1.6*1.2mm SMD 24.000MHz 8pF ±10ppm quartz crystal

IN_STOCK
Quartz crystal
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
TX8
Package/Case
SMD1612
Frequency
24.000000 MHz
CL
8 pF
Frequency Tolerance (25±3℃)
±10 ppm
Operating Temperature
-20+70 ℃
Frequency Stability vs.Temperature
±10 ppm
L x W/Size
1.6*1.2 mm
Height
0.35 mm
E.S.R
80 to 150 Ω
Shunt Capacitance(C0)
3.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
1 to 200 μW
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
Encapsulation technology
Seam Sealing
MPQ
3000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features

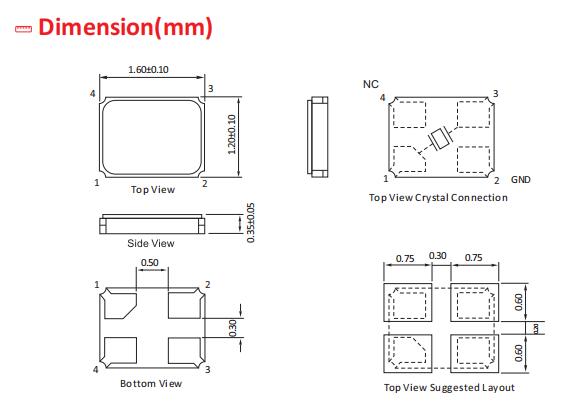

Size 1.6 × 1.2 , Ultra thin , thickness 0.35mm
High precision and high frequency stability
Designed for automatic mounting and reflow soldering
RoHS Compliant /Pb Free
