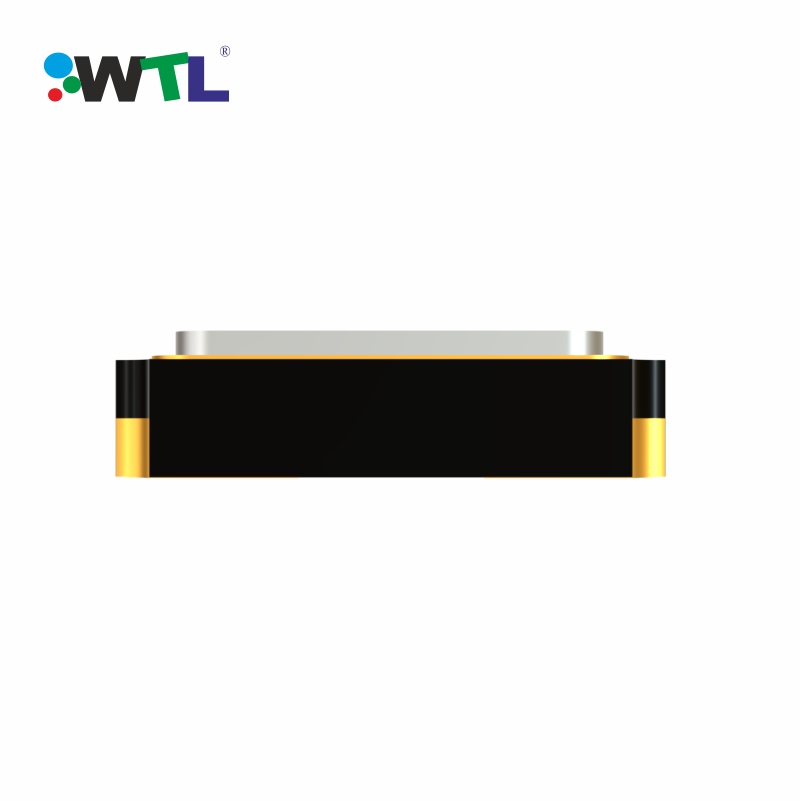

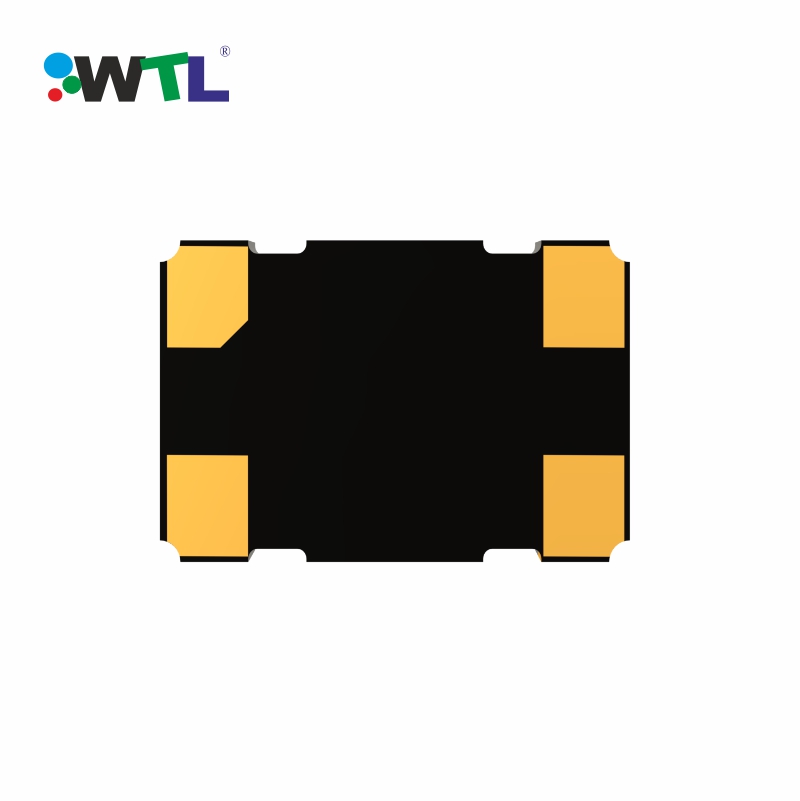

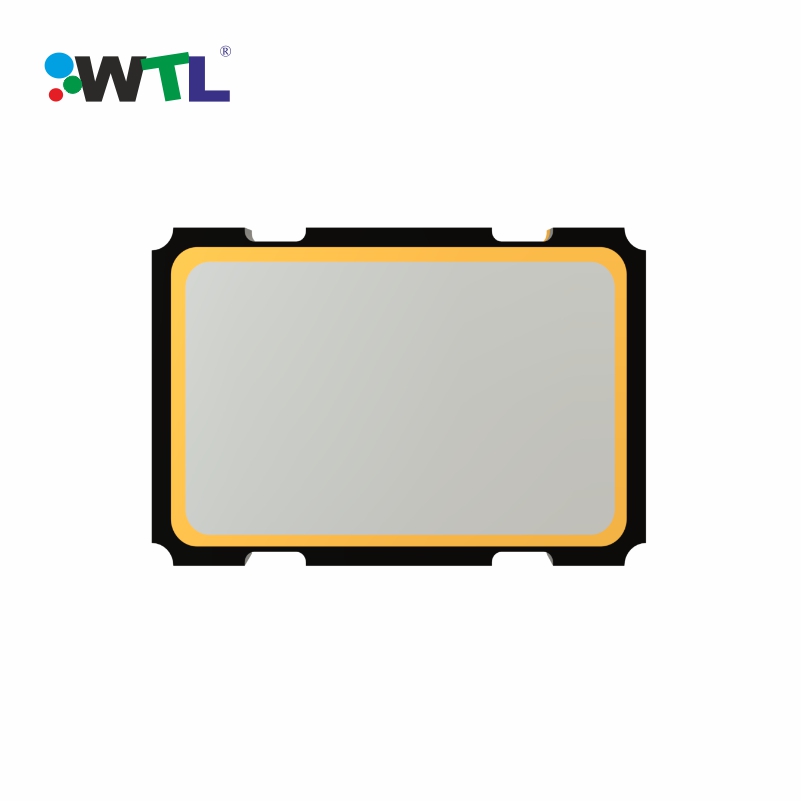

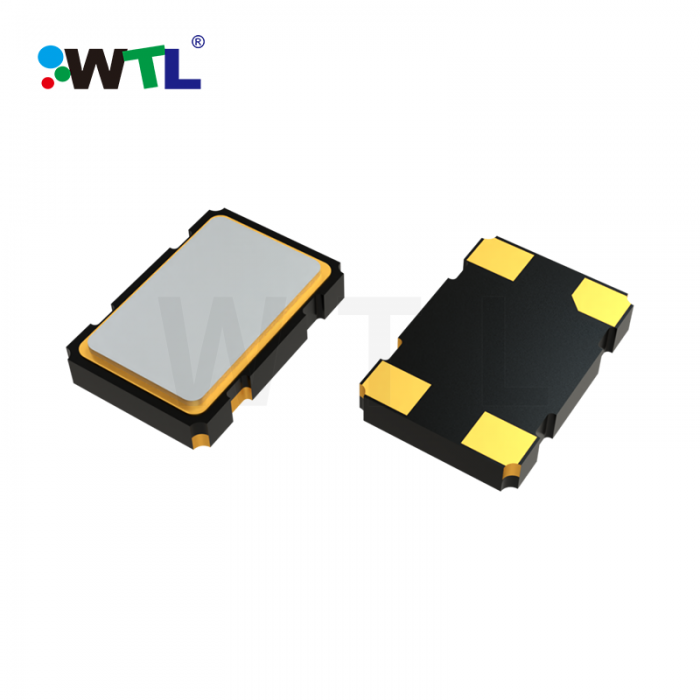

VC2 2.5*2.0mm 26.000MHz -0.3+4.6V ±2ppm VCTCXO
VC2.pdfSale
¥13.60
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
VC2
Package/Case
SMD2520
Frequency
26.000000 MHz
Supply Voltage
-0.3~4.6 V
Tolerance
±5 %
Output Level
0.8 Vp-p
Current Consumption
1.5 or 2.0 mA
Duty Cycle
45/55 %

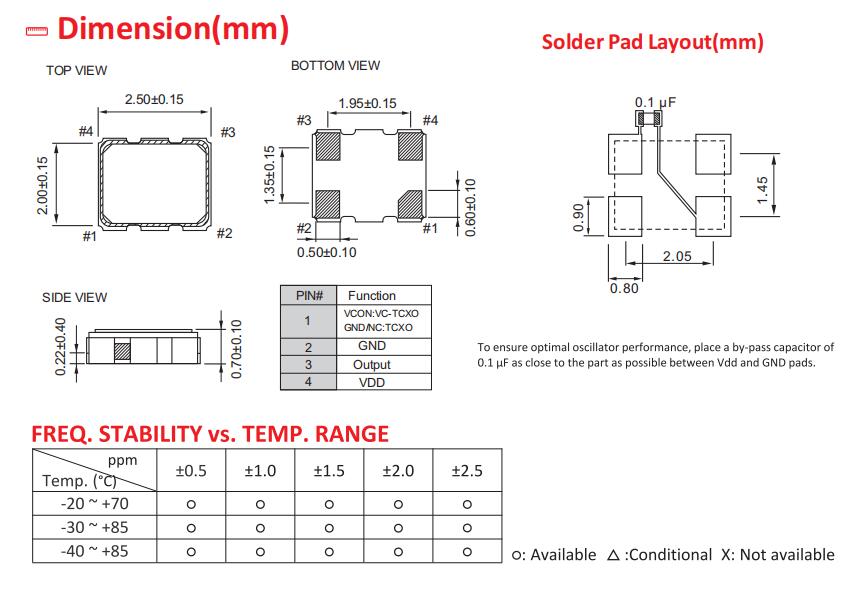

L x W/Size
2.5*2.0 mm
Height
0.7 mm
Initial stability △25℃
±2.0 ppm
△F vs △T
±0.5 ppm
△F vs △V
±0.2 ppm
△F vs △CL
±0.2 ppm
Output Load
10 pF
Start up Time
2 ms
Phase Noise
-115 or -135 or -148 dBc/Hz
Output Wave
Clipped Sine Wave
Aging
3 ppm/year
Storage Temperature
-55~+125 ℃
Lead Quantity
4Pads Pin
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
VCTCXO
MFG
WTL International Limited
Country of Origin
China
Features
Typical 2.5 x 2.0 x 0.7 mm SMD package.
Compactness and lightweight VCTCXO available
Low thickness
