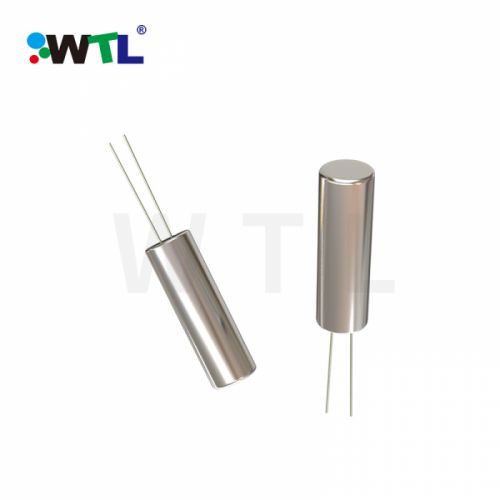

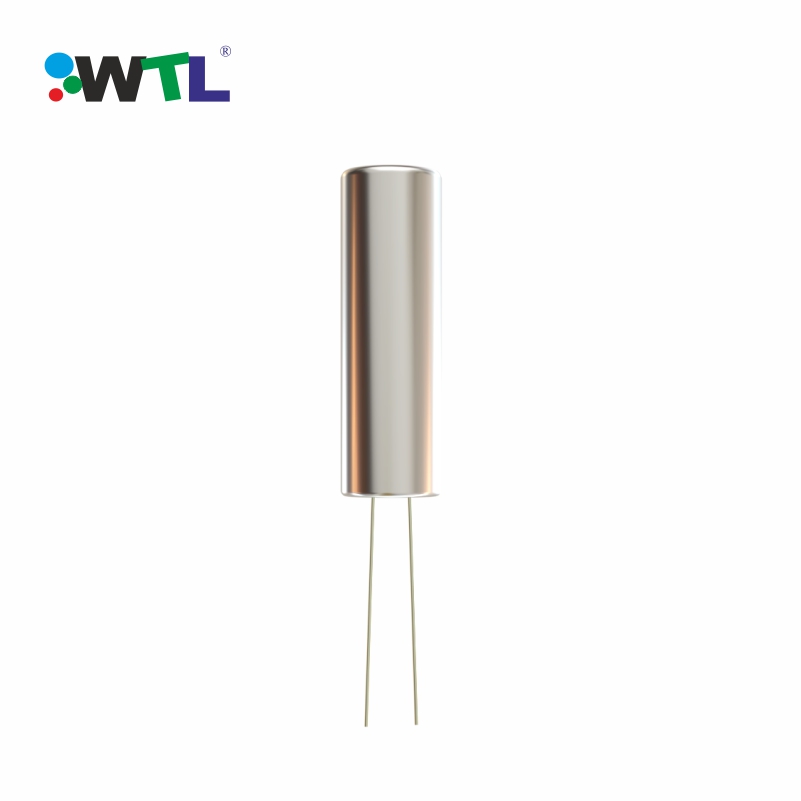

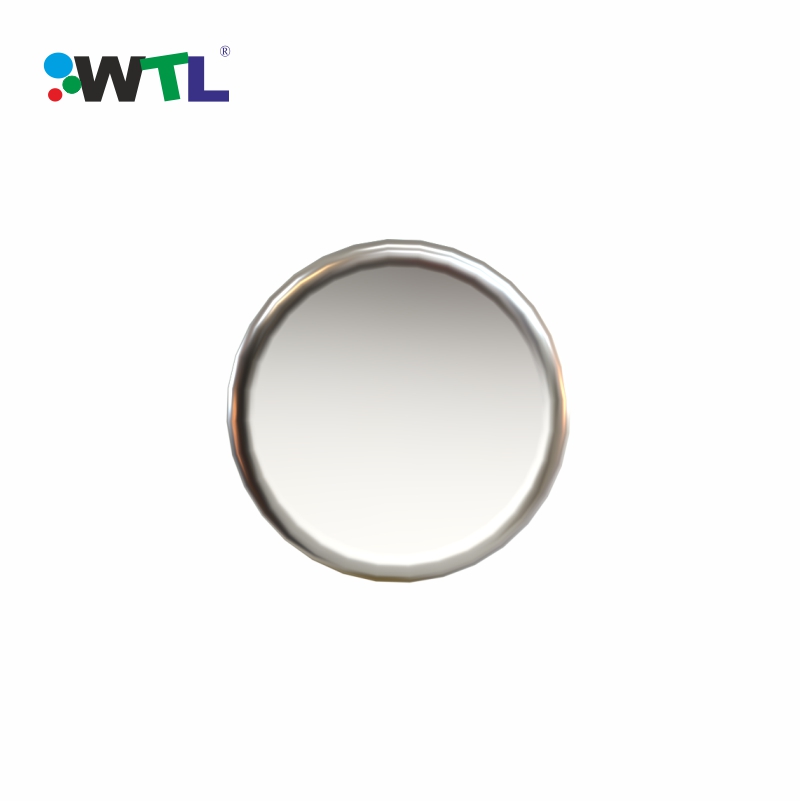

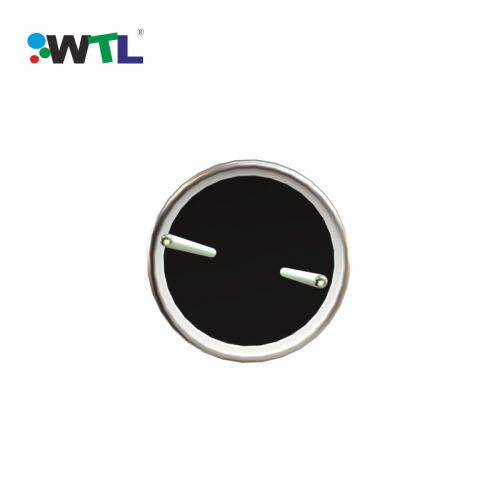

WT8 3*8mm DIP 40.000KHz 12.5pF ±20PPM tuning fork crystal
WT8.pdfSale
¥0.84
In Stock
Ladder Price
-
Free ShippingFor orders from ￥300
-
Support 24/7Call us anytime
-
100% SafetyOnly secure payments
-
Hot OffersDiscounts up to 20%
Series
WT8
Package/Case
DIP3080
Frequency
40.000 KHz
CL
12.5 pF
Frequency Tolerance （25±3℃）
±20 ppm
Operating Temperature
-20+70 ℃

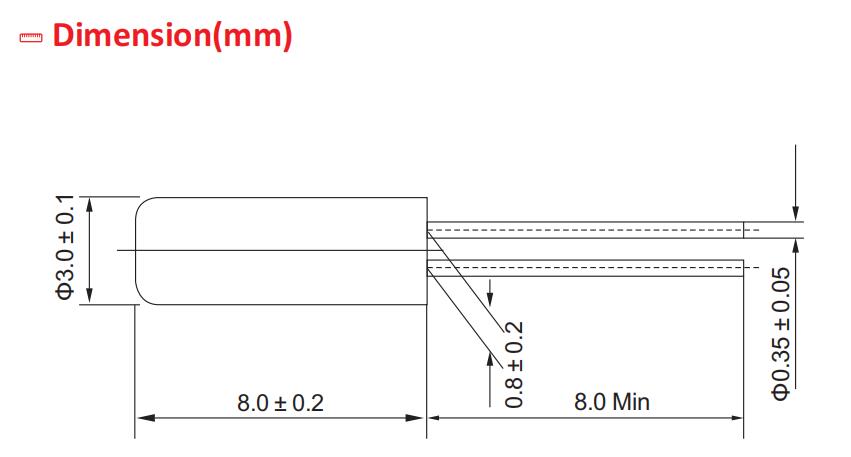

L x W/Size
3.0*8.0 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
1.8 pF
Storage Temperature
-40~+85 ℃
Aging
±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
Package type
Bag
MPQ
3000 pcs
Mounting type
DIP
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.034±10%) x 10^-6/°C^2
Features
Small size Φ3 x 8mm
A great number of standard frequencies
Higher frequency available and lower equivalent series resistance
Lower cost and highly mass production capability
The best choice of PC and Clock
RoHS Compliant / Pb Free
