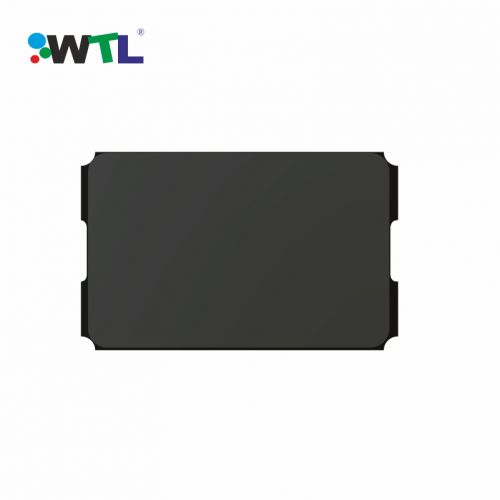

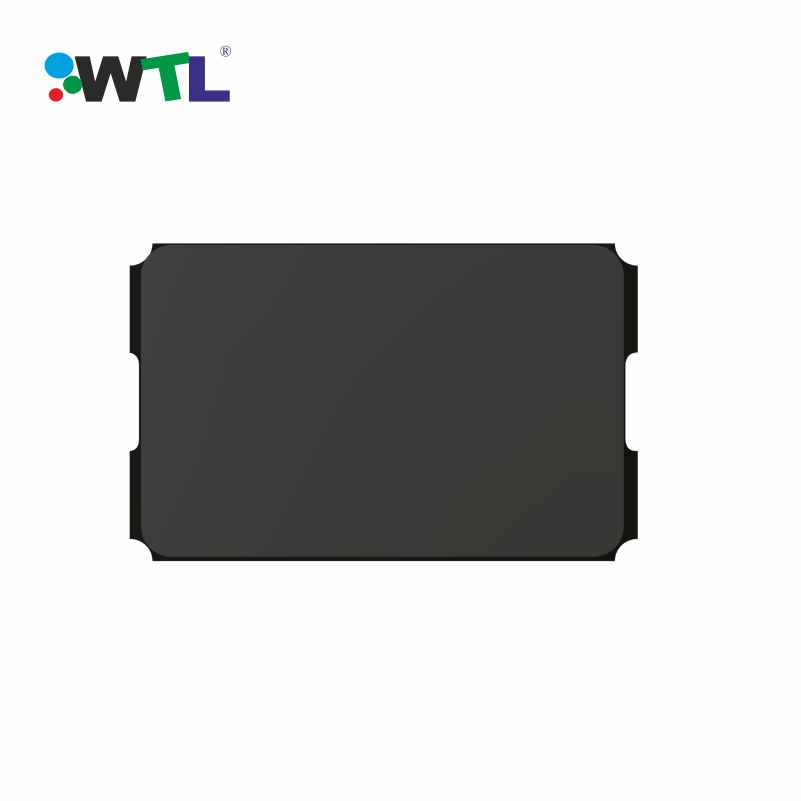

TG5 5.0*3.2mm Glass 50.000MHz 16pF ±10ppm quartz crystal
TG5.pdfSale
¥1.56
In Stock
Ladder Price
-
Free ShippingFor orders from ￥300
-
Support 24/7Call us anytime
-
100% SafetyOnly secure payments
-
Hot OffersDiscounts up to 20%
Series
TG5
Package/Case
SMD5032
Frequency
50.000000 MHz
CL
16 pF
Frequency Tolerance （25±3℃）
±10 ppm
Operating Temperature
-10+60 ℃
Frequency Stability vs.Temperature
±30 ppm

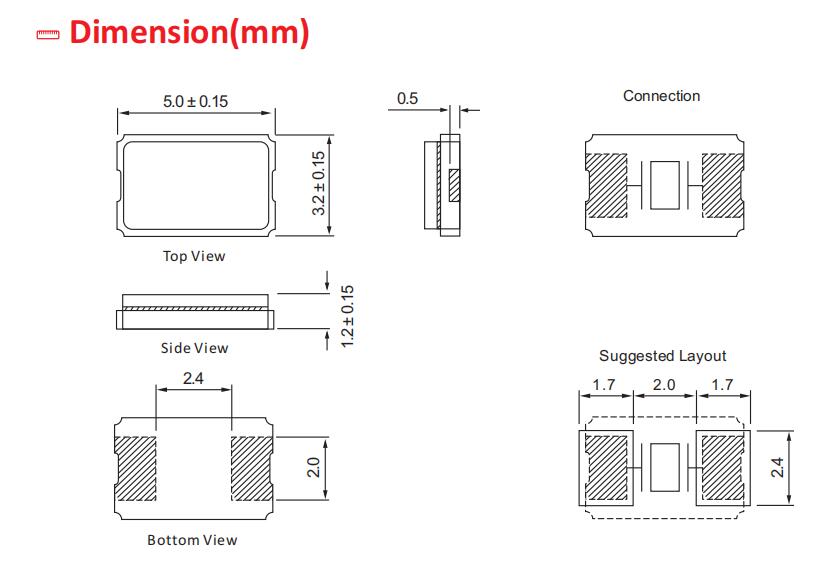

L x W/Size
5.0*3.2 mm
Height
1.2 mm
E.S.R
40 to 100 Ω
Shunt Capacitance(C0)
5.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
1~200 μW
Aging
±3.0 ppm/year
Lead Quantity
2 Pad
Encapsulation technology
Seam Sealing
MPQ
1000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features
2 pads SMD glass sealed crystal units
High reliable environmental performance
Tight tolerance and stability parts are available
Designed for automatic mounting and reflow soldering
Contains Pb in sealing glass exempted by RoHS directive
