WX8 2*6mm SMD 32.768KHz 12.5pF ±10ppm tuning fork crystal

In Stock
Tuning fork crystal
Key Features:
Sale
¥1.00
In Stock
Stock 10000
Brand WTL
Ladder Price
QuantityPrice
1000+¥ 1.00
  • Free Shipping
    For orders from ¥300
  • Support 24/7
    Call us anytime
  • 100% Safety
    Only secure payments
  • Hot Offers
    Discounts up to 20%
Series
WX8
Package/Case
SMD2060
Frequency
32.768 KHz
CL
12.5 pF
Frequency Tolerance (25±3℃)
±10 ppm
Operating Temperature
-20+70 ℃

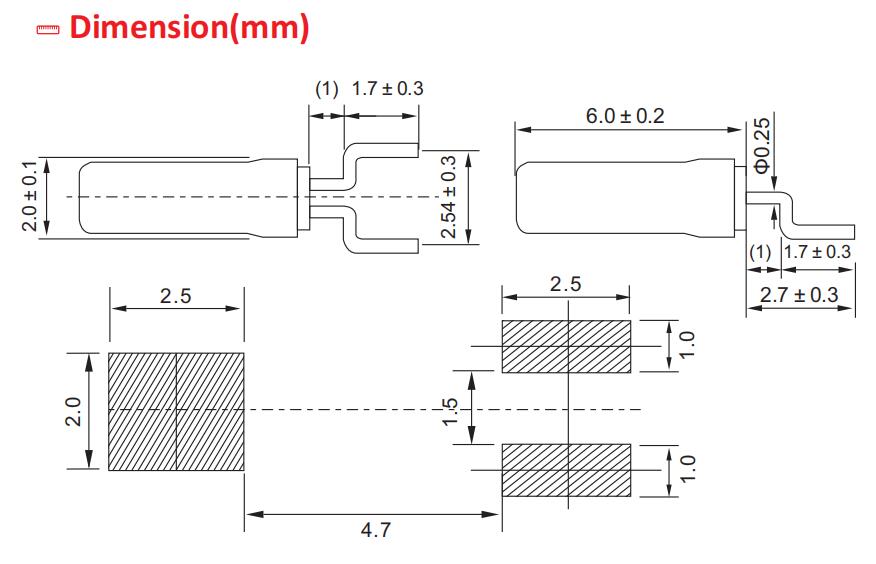

L x W/Size
2.0*6.0 mm
Drive Level
0.1~1 μW
Shunt Capacitance(C0)
1.45 pF
Storage Temperature
-40+85 ℃
Aging
±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
Package type
Bag
MPQ
3000 pcs
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Insulation Resistance
500 MΩ @ DC100V
Special Requirement
No
MFG
WTL International Limited
Country of Origin
China
Turnover Temperature
25±5 ℃
Temperature coefficient
(-0.035±10%) x 10^-6/°C^2
Features
Small size Φ2 x 6mm
Wide frequency range: 30kHz~350kHz
High reliability and high frequency stability
Suited for automatic mounting and reflow soldering
Environmentally friendly products, RoHS certified
