WZ1 51U 1.3999MHz Series ±10ppm quartz crystal
WZ1.pdfSale
¥70.00
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
WZ1
Package/Case
51U
Frequency
1.399900 MHz
CL
Series pF
Frequency Tolerance （25±3℃）
±10 ppm
Operating Temperature
-20+70 ℃
Frequency Stability vs.Temperature
±30 ppm

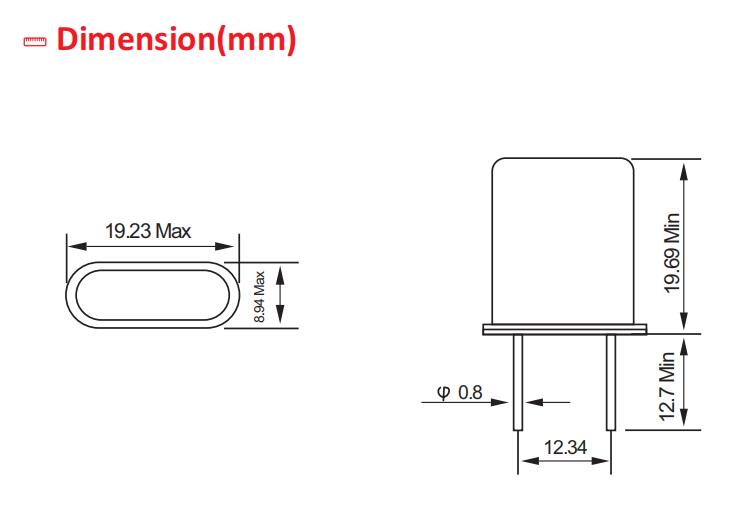

L x W/Size
19.2*8.9 mm
Height
19.7 mm
E.S.R
80 to 1000 Ω
Shunt Capacitance(C0)
7.0 pF
Storage Temperature
-55~+125℃
Drive Level
0.5~2 mW
Aging
±2.0 or ±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
MPQ
1000 pcs
Package type
Bag
Mounting type
DIP
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features
Resistance welded type crystal units
Low frequency as 850KHz is available
AT-Cut
RoHS Compliant / Pb Free
