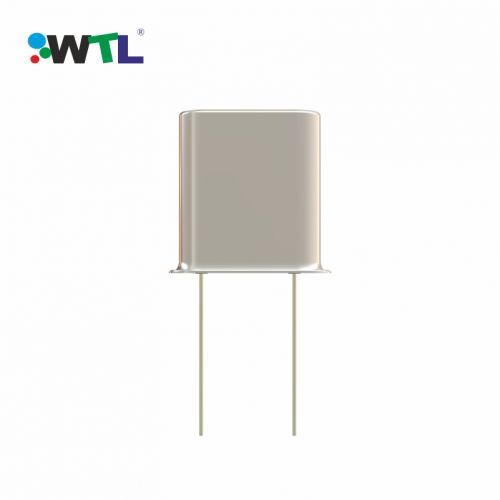

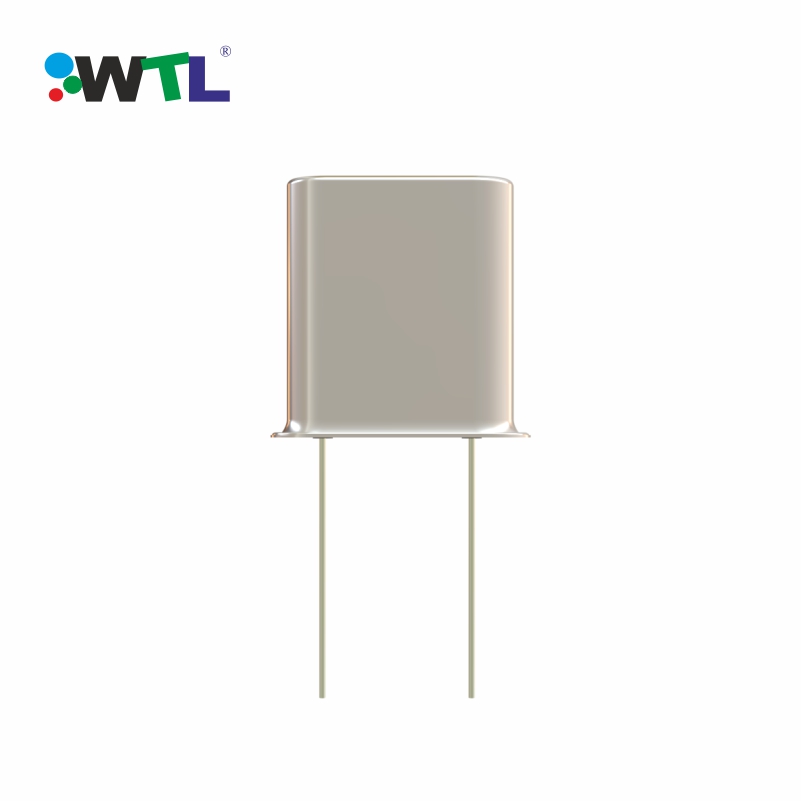

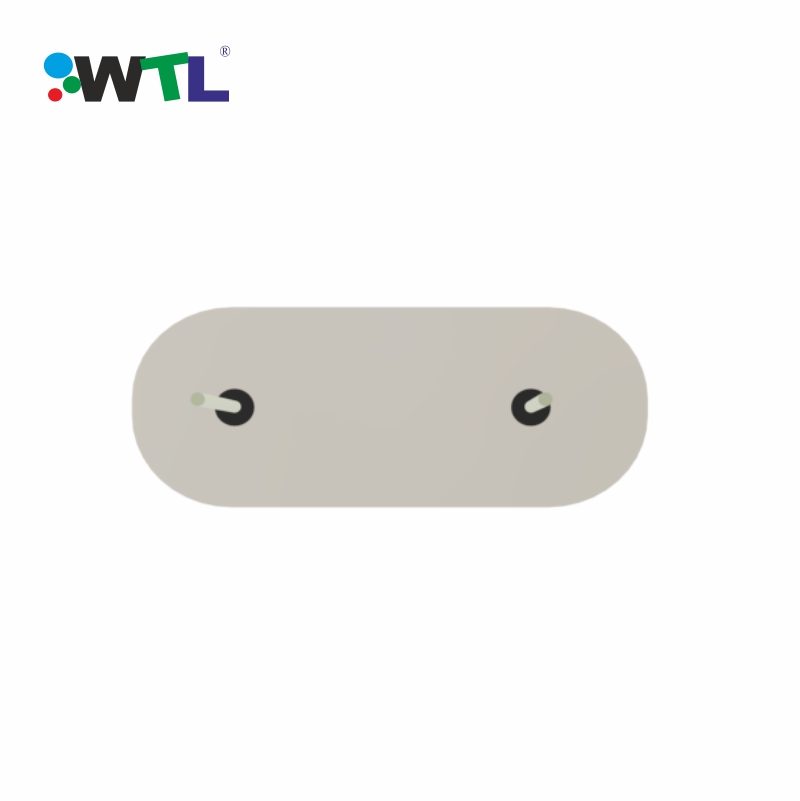

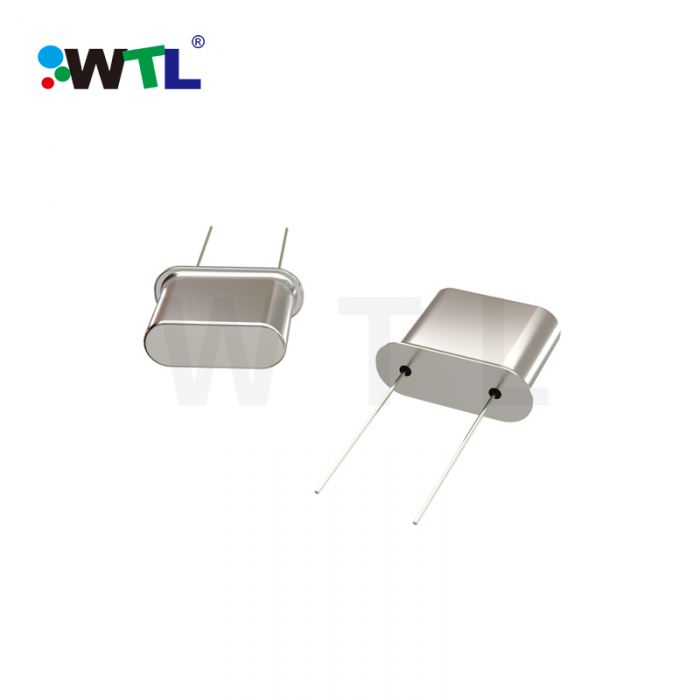

WM1 UM-5 SMD 98.304MHz 20pF ±30ppm quartz crystal
WM1.pdfSale
¥4.20
IN_STOCK
LADDER_PRICE
-
FREE_SHIPPINGFREE_SHIPPING_DES
-
SUPPORT_TIMESUPPORT_TIME_DES
-
SAFETYSAFETY_DES
-
HOT_OFFERSHOT_OFFERS_DES
Series
WM1
Package/Case
UM-1 or UM-5
Frequency
98.304000 MHz
CL
20 pF
Frequency Tolerance （25±3℃）
±30 ppm
Operating Temperature
-10+60 ℃
Frequency Stability vs.Temperature
±30 ppm

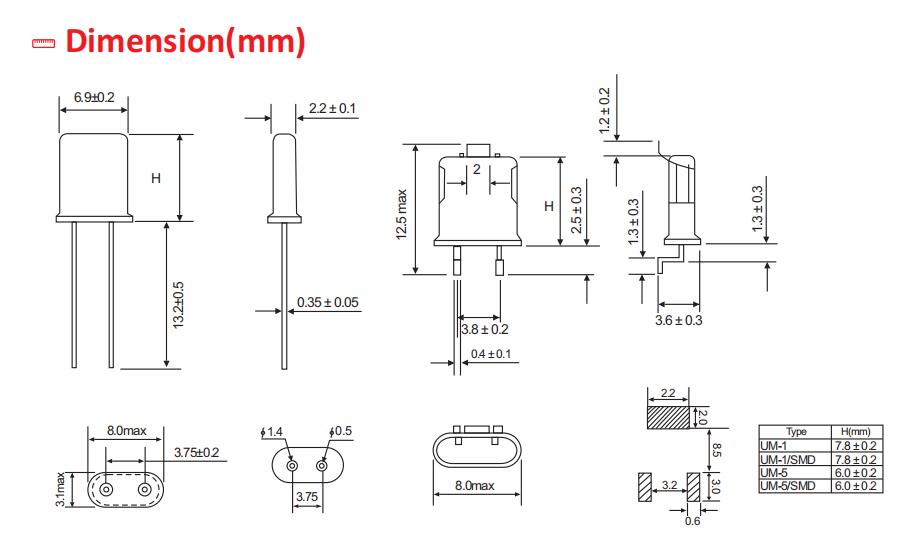

L x W/Size
8.0*3.1 mm
Height
7.8 or 6.0 mm
E.S.R
30 to 80 Ω
Shunt Capacitance(C0)
7.0 pF
Storage Temperature
-55~+125 ℃
Drive Level
1~100 μW
Aging
±5.0 ppm/year
Lead Quantity
2 Pin
Encapsulation technology
Metal Welded
MPQ
1000 pcs
Package type
Bag
Mounting type
DIP
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Country of Origin
China
MFG
WTL International Limited
Special Requirement
No Special
Features
Excellent frequency temperature characteristics extending
across a wide temperature range.
Excellent aging characteristics
Uniform frequency tuning range and modulation sensitivity
Excellent shock resistance
