TC3 3.2*2.5mm OSC 12.288MHz 3.3V ±50ppm crystal oscillator

IN_STOCK
Crystal Oscillator(CMOS)
KEY_FEATURES:
  • FREE_SHIPPING
    FREE_SHIPPING_DES
  • SUPPORT_TIME
    SUPPORT_TIME_DES
  • SAFETY
    SAFETY_DES
  • HOT_OFFERS
    HOT_OFFERS_DES
Series
TC3
Package/Case
SMD3225
Frequency
12.288000 MHz
Frequency Tolerance (25±3℃)
±50 ppm
Operating Temperature
-20+70 ℃
Frequency Stability vs.Temperature
±50 ppm

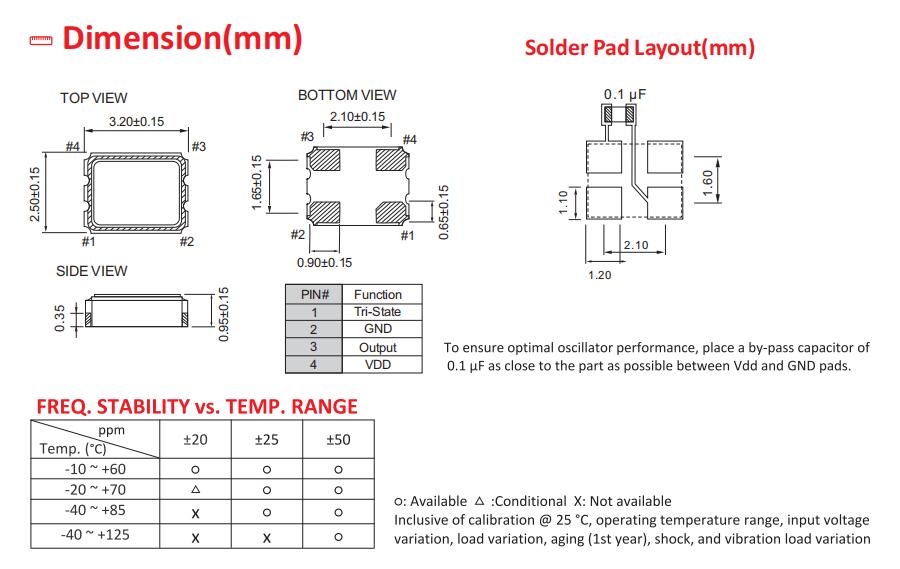

L x W/Size
3.2*2.5 mm
Height
0.95 mm
Supply Voltage
3.3 V
Output type
CMOS
Output Load
15 pF
Storage Temperature
-55~+125 ℃
Current Consumption
7/10/15 mA
Control Function
With Tri-State
Duty Cycle
45/55 %
Drive Ability
Default(datasheet limits)
Output Wave
Square Wave
Aging
±3.0 ppm/year
Lead Quantity
4 Pads
Encapsulation technology
Seam Sealing
Package type
Tape/Reel
MPQ
3000 pcs
Country of Origin
China
MFG
WTL International Limited
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Quartz Crystal
Programmable frequency
1.25~125 MHz
Special Requirement
no special requirement
Features
Typical 3.2 x 2.5 x 0.95mm SMD package.
Tight symmetry (45 to 55%) available.
Operation voltage: 1.8V, 2.5V, 3.3V
Tri-state enable/disable
RoHS compliant/Pb-free
