WTL TX5 5032 SMD 12.000MHz 20pF 20ppm quartz crystal
TX5.pdfSale
¥1.00
In Stock
Ladder Price
-
Free ShippingFor orders from ￥300
-
Support 24/7Call us anytime
-
100% SafetyOnly secure payments
-
Hot OffersDiscounts up to 20%
Series
TX5
Package/Case
SMD5032
Frequency
12.000000 MHz
CL
20 pF
Frequency Tolerance （25±3℃）
±20 ppm
Operating Temperature
-10+60 ℃
Frequency Stability vs.Temperature
±20 ppm
Cut Type
AT Cut
Overtone
Fundamental
E.S.R
60~120 Ω
Shunt Capacitance(C0)
5.0 pF
Storage Temperature
-55~+125℃ ℃
Drive Level
1~100(10 typical) μW
Aging
±3.0 ppm/year
Lead Quantity
4 Pin
MPQ
1000 pcs
Package type
Tape/Reel
Mounting type
SMT
Pb Free
Yes
Application level
Consumer
Partlife Cycle Code
Active
Material
Seam sealed
Special Requirement
No
Country of Origin
China
MFG
WTL International Limited
Features

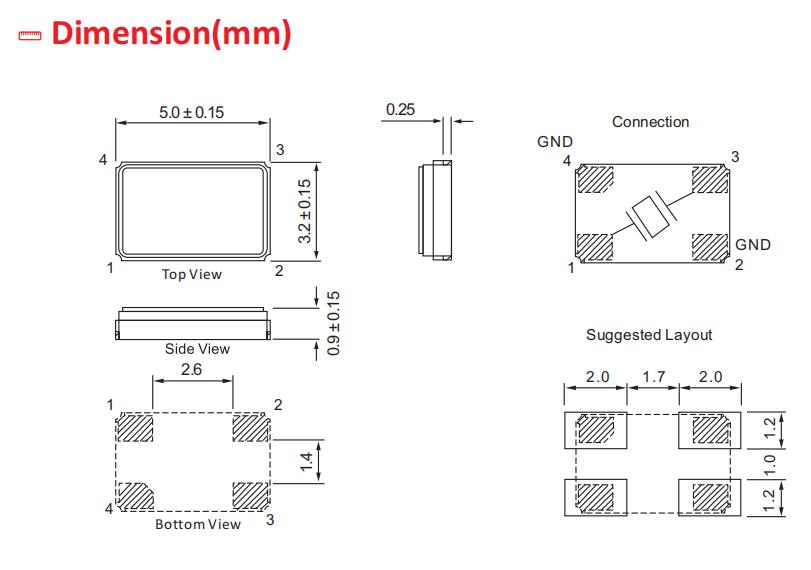

Size 5.0×3.2, thickness 0.9mm
High precision and high frequency stability
Excellent heat resistance and environmental characteristics
Designed for automatic mounting and reflow soldering
RoHS Compliant / Pb Free
